  • Mechanical Seal
  • Cartridge
  • XP-200

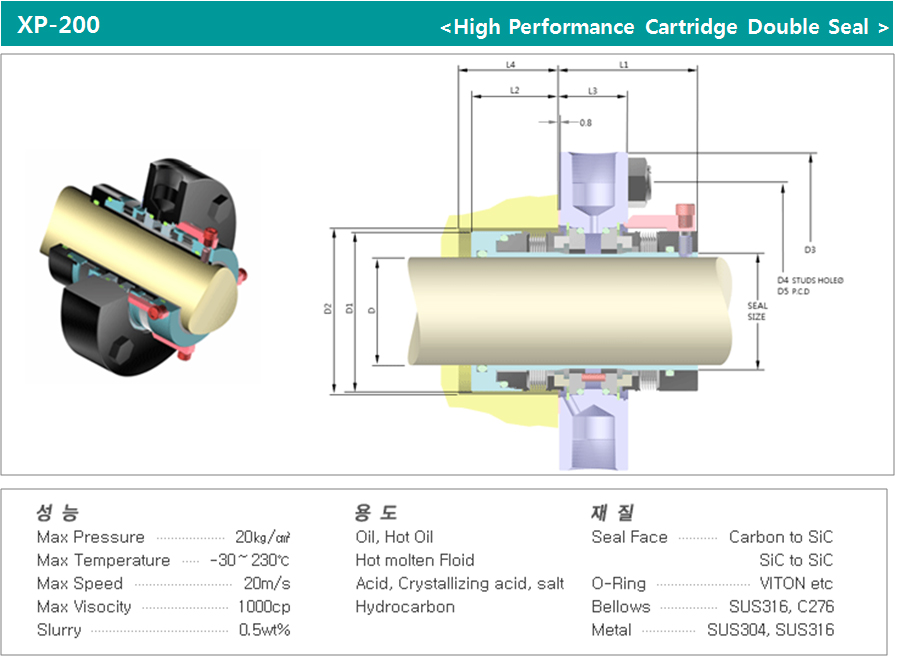

Mechanical Seal

메뉴 접기

회사제품

치수표

치수표 테이블
SIZE D
±0.025		 D1 D2
MIN / MAX		 D3
±0.5		 D4 D5
MIN		 L1 L2 L3 L4
MIN
28 25 42.2 44 / 49 95 11.2 70.0 51.5 30.5 25.8 33.0
32 28 46.0 48 / 52 98 14.3 76.2 51.5 30.5 25.8 33.0
35 32 49.2 51 / 55 108 14.3 79.4 51.5 30.5 25.8 33.0
40 35 55.5 58 / 65 119 11.2 95.2 51.5 32.0 25.8 35.0
45 40 58.7 61 / 68 119 14.3 95.2 51.5 32.0 25.8 35.0
50 45 65.1 67 / 74 127 14.3 98.4 51.5 35.0 25.8 38.0
55 50 71.4 73 / 84 152 17.5 111.1 51.5 35.0 25.8 38.0
60 55 74.6 77 / 87 165 17.5 117.5 51.5 35.0 25.8 38.0
65 60 84.1 86 / 96 168 17.5 127.0 54.0 40.0 28.2 43.0
70 65 87.3 89 / 100 184 20.7 146.0 54.0 40.0 28.2 43.0
