Mechanical Seal

메뉴 접기

회사제품

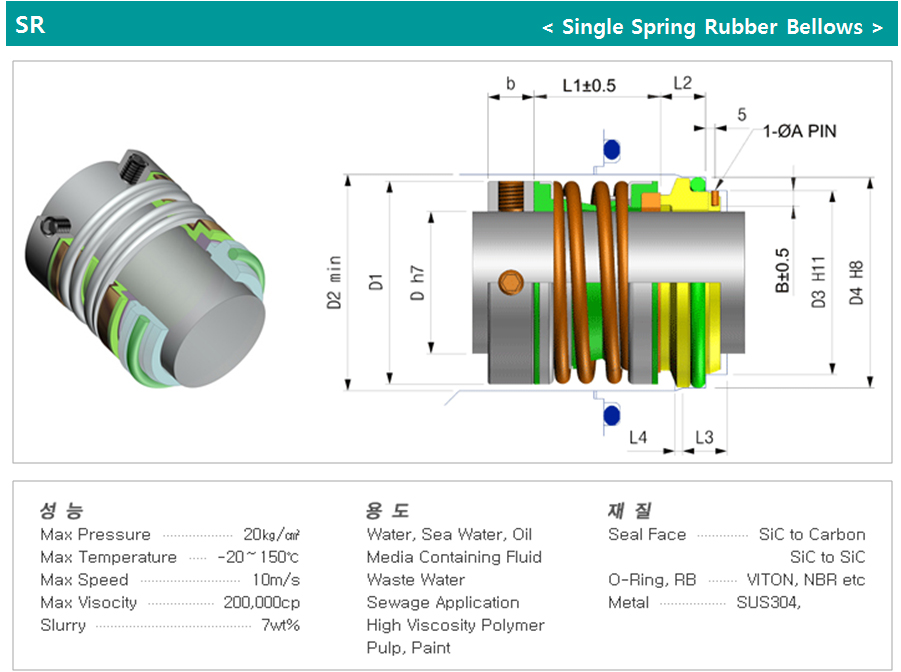

치수표 () 안의 치수표는 2 오링 Type 치수임

치수표 테이블
SIZE D D1 D2 D3 D4 L L1 L2 L3 L4 A B
012 12 22 24 19 23 26.5 10.0 10.0 4 1.2 - -
015 15 25 27 23 27 29.0 10.0 10.0 4 1.5 - -
020 20 34 36 29 35 31.5 10.0 10.0 5 1.5 - -
025 25 39 41 34 40 34.0 10.0 10.0 5 1.5 - -
030 30 44 46 39 45 32.5 10.0 10.0 5 1.5 - -
035 35 49 51 44 50 32.5 10.0 10.0 5 1.5 - -
040 40 56 60 51 58 34.5 10.5 10.0 6 1.5 - -
045 45 61 65 56 63 33.2 11.8 12.0 6 2.5 - -
050 50 66 70 62 70 32.8 14.7 12.0 6 2.5 - -
055 55 72 75 67 75 36.0 11.5 12.0 6 2.5 - -
060 60 78 85 72 80 37.5 15.0 12.0 6 2.5 4 5
065 65 83 90 77(75.2) 85(81.2) 39.0 16.5 13(20.5) 6 2.5 4 5
070 70 88 95 83(79.9) 92(85.9) 46.5 16.5 13.0 7 2.5 4 5
075 75 95 104 88 97 46.0 18.0 13.0 7 2.5 4 5
080 80 99.5 109 95 105 46.0 18.2 13.0 7 2.5 4 6
085 85 109.0 114 100 110 47.5 18.2 13.0 7 2.5 4 6
090 90 114.0 119 105(103.8) 115(109.8) 52.5 18.2 14(21.3) 7 2.5 4 6
095 95 119.0 124 110 120 52.5 17.2 14.0 7 2.5 4 6
100 100 124.0 129 115 125 52.5 17.2 14.0 7 2.5 4 6

SPECIAL

SPECIAL 테이블
SIZE D D1 D2 D3 D4 L1 L2 b L3 L4 A B
055P 55 72 75 63.5 69.4 36 11.5 12 6 2.5 - -
065P 65 83 90 76 81.7 39 13 13 16 2.5 4 5
070P 70 88 100 83 92 46.5 16.5 13 7 2.5 4 5
075P 75 95 100 86.4 92.3 46 18 13 7 2.5 4 5
090P 90 113.4 122 92 109.8 50 15 13 6 3 3 5
095P 95 116 120 108.8 114.7 52.5 31 14 7 2.5 4 6
120P 120 144 152 133.4 142.4 58 19.5 14 10 4 4 6
130P 130 159.4 - 146.2 164 60 20 14 - - 5 -

SPECIAL SEAT

SPECIAL SEAT 테이블
SIZE D D1 D2 D3 D4 L1 L2 b L3 L4 A 전장
095P-ST095 96.5 - - 109.5 120 - 20 - - - - 26.5

INCH

INCH 테이블
SIZE D D1 D2 D3 D4 L1 L2 b L3 L4 A B
2.625 66.67 83 90 85.9 92 39.0 16.5 13 6 2.5 4 5
3.000 76.20 99 107 88 102 40.0 15.0 13 7 2.5 4 5
