  • Mechanical Seal
  • Cartridge
  • CB260

Mechanical Seal

메뉴 접기

회사제품

치수표

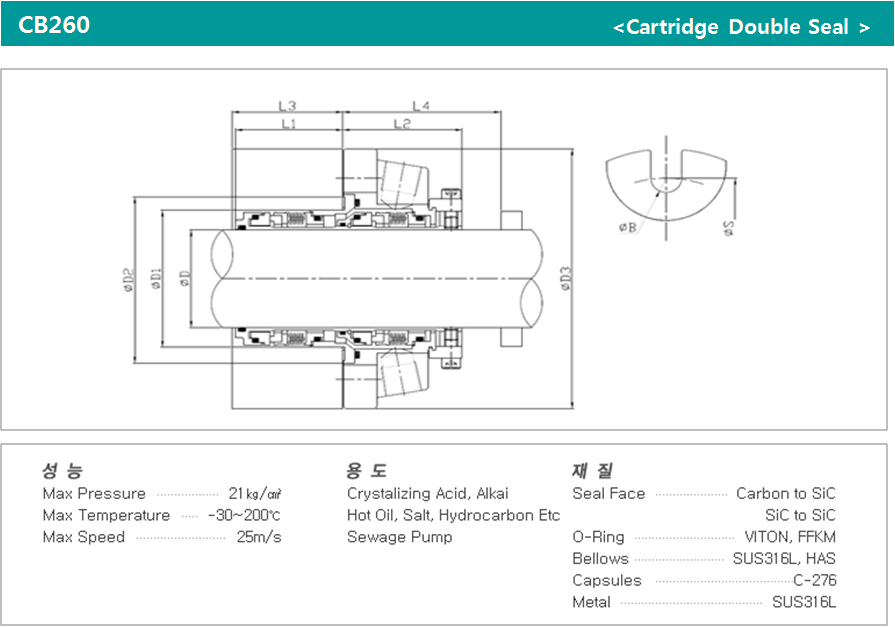

치수표 테이블
SIZE D D1(Min) D1(Max) D2 D3 L1 L2 L3 L4 B S
1.000 1.000 1.625 1.875 2.115 3.69-3.75 1.838 2.062 1.900 2.214 0.440 2.750
1.125 1.125 1.750 2.000 2.240 3.69-3.75 1.838 2.062 1.900 2.214 0.440 2.875
1.250 1.250 1.890 2.245 2.495 4.19-4.25 1.838 2.062 1.900 2.214 0.562 3.125
1.375 1.375 2.000 2.375 2.615 3.94-4.00 1.838 2.062 1.900 2.214 0.440 3.250
1.437 1.437 2.250 2.688 2.775 4.72-4.78 1.903 1.122 1.965 2.184 0.560 3.750
1.500 1.500 2.250 2.525 2.775 4.69-4.75 1.903 2.122 1.965 2.184 0.560 3.750
1.625 1.625 2.375 2.780 3.030 4.69-4.75 1.903 2.122 1.965 2.184 0.560 3.750
1.750 1.750 2.500 2.875 3.150 4.94-5.00 1.903 2.122 1.965 2.184 0.560 3.875
1.875 1.875 2.625 2.875 3.150 4.94-5.00 1.903 2.122 1.965 2.184 0.560 3.875
1.934 1.934 2.690 2.920 TBD TBD 1.903 2.122 1.965 2.184 TBD TBD
2.000 2.000 2.750 3.030 3.280 5.00-5.12 1.903 2.122 1.965 2.184 0.688 4.120
2.125 2.125 2.875 3.125 3.430 5.94-6.00 1.903 2.122 1.965 2.184 0.750 4.250
2.250 2.250 3.000 3.280 TBD TBD 1.903 2.122 1.965 2.184 TBD TBD
2.375 2.375 3.125 3.687 3.975 6.32-6.38 1.903 2.122 1.965 2.184 0.750 4.875
2.437 2.437 3.375 3.450 TBD 6.32-6.38 1.934 2.091 1.996 2.153 0.750 4.875
2.500 2.500 3.375 3.687 3.975 6.32-6.38 1.903 2.122 1.965 2.184 0.750 4.875
2.625 2.625 3.625 4.312 4.4615 7.19-7.25 2.429 2.906 2.491 2.968 0.880 5.625
2.750 2.750 3.750 4.312 4.4615 7.19-7.25 2.429 2.906 2.491 2.968 0.880 5.625
